LOW INTENSITY:
AOL: Li-1016A

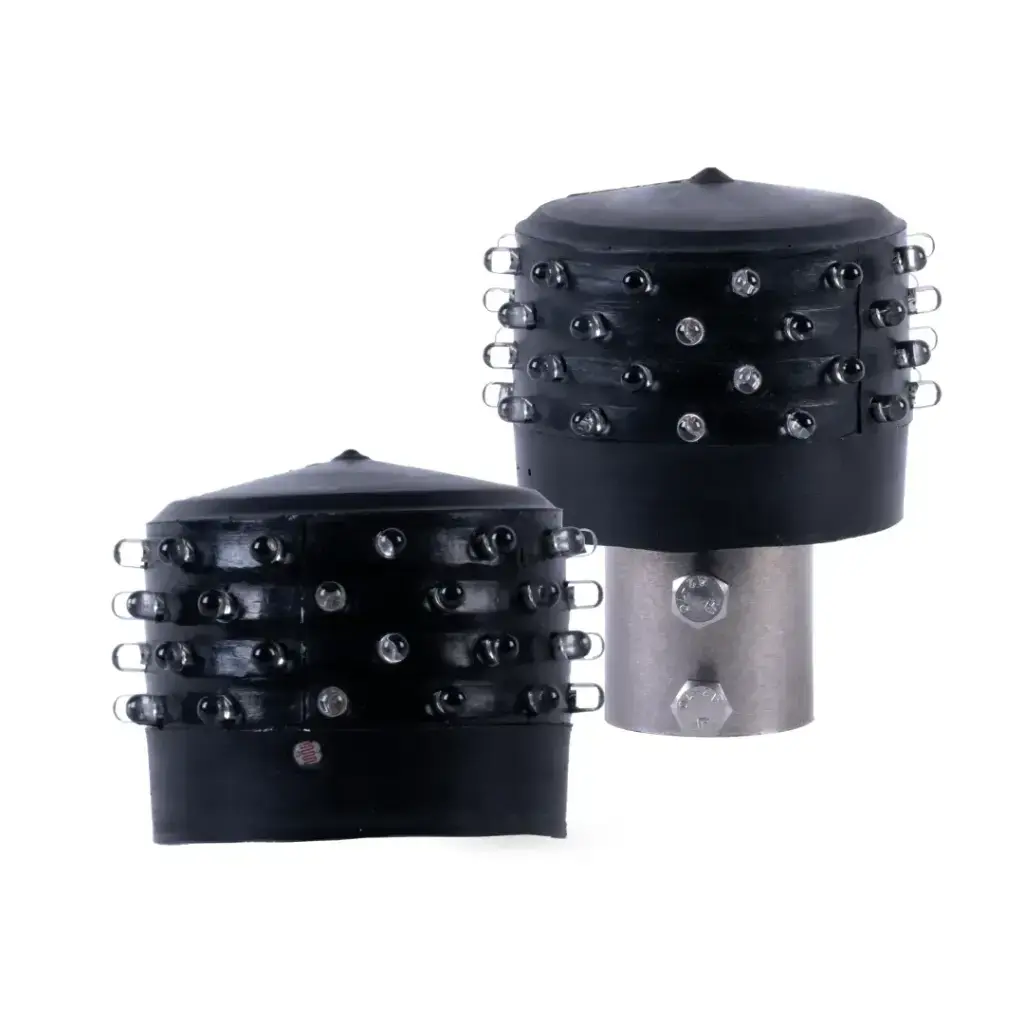

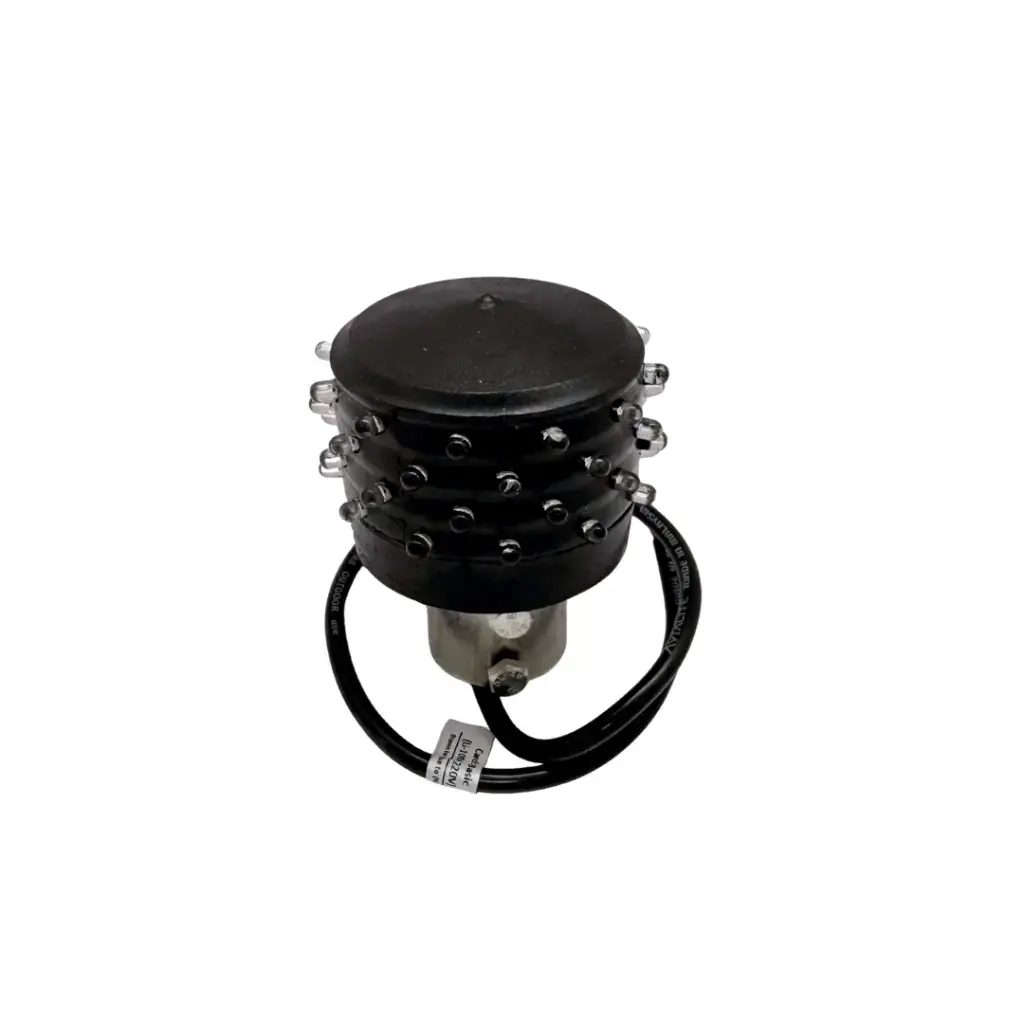

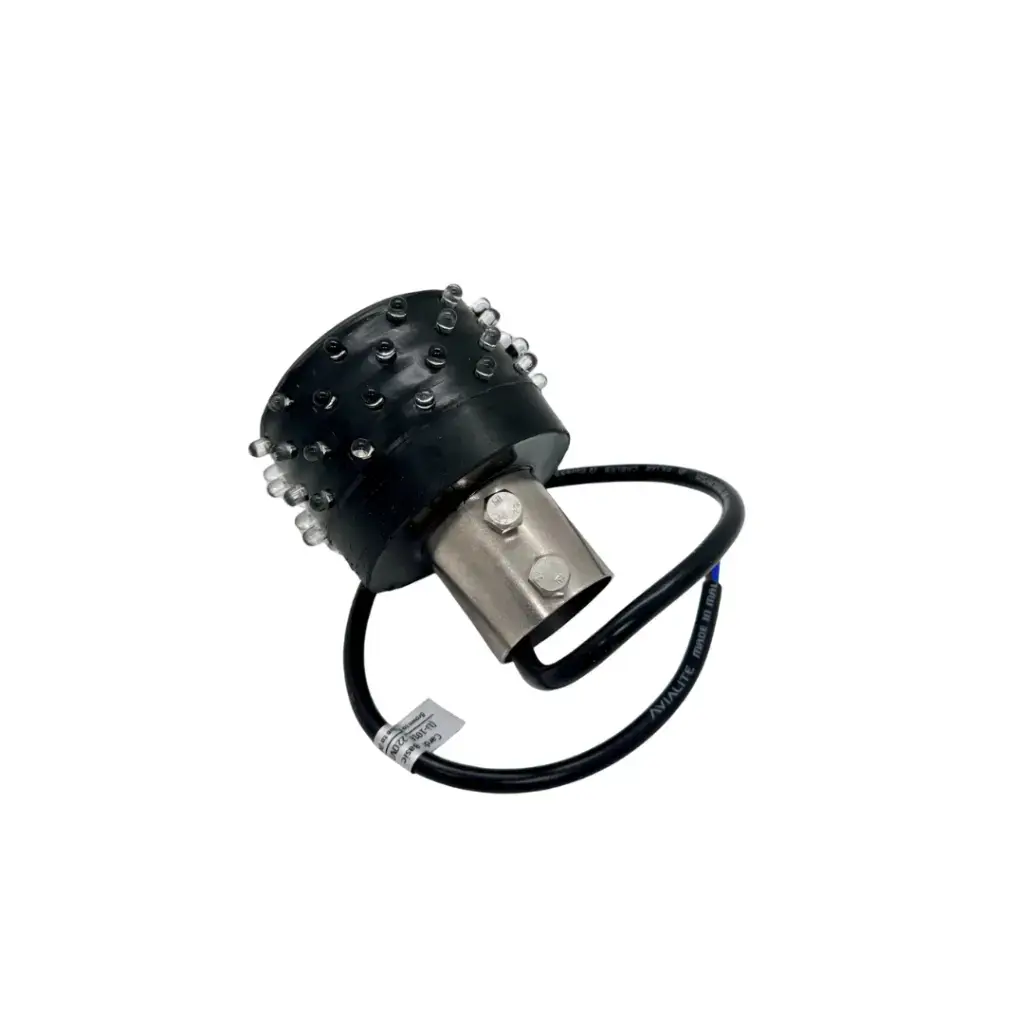

Introducing our Low Intensity Type A Aviation Obstruction Light – ideal for less extensive structures below 45 meters above ground level.
Trust our Low Intensity Type A model for dependable warning lights, safeguarding aviation operations at night.
Everything you should know about our AOL: Li-1016A
Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.
Features
25 cd Brightness
IP67 Rating
Surge Protection
Power
Savings
Solid State Tech
Photo Sensor
Super Lite
Compliance
ICAO
CAAM
SIRIM
Application
Building
Chimney
Wind Turbines
Bridges
Telecom Towers
Specifications
Engineered to Meet Standards. Designed for Reliable Performance
Compliance and Certifications
- ICAO Annex 14
- CAAM ASD 404
- CAD 14
Dimension (L*W*H) & Weight
-
83x83x65mm
- 0.4KG (Single Model)
- 0.9KG (Twin Model)
- 0.4KG (Bracket)
- 9.0KG (WP Control Panel 0 + 1)
Performed Test
- Rain Test - 130mm/h
- Wind Test - 150km/h
- Humidity Test - 95% RH (+55˚C for 72h)
- Operational Test - 1000h
- Leakage Current Test - < 10µA
Characteristics
- Light Type - Low Intensity Type A
- Light Source - 48 LED Cluster
- Lifespan - ≥ 100,000h
- Effective Intensity - 25 cd
- Light Color - Red
- Horizontal Beam - 360˚
- Vertical Beam - >10˚
Operation
- Mode: Steady Burning (Fixed)
- Temperature: -10˚C ~ +80˚C
- IP Rate: IP67
Material
- Body - UV Resist Epoxy
- Mounting - Stainless Steel
Ready to elevate aviation safety with reliable lighting solutions?
Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.
INNOVATIVE LED SOLUTIONS
BETTER
BY DESIGN
Built to last, we engineer our lights with many special features to match the uncompromising environment that they are used in. One of which is its waterproof feature to ensure that it is able to withstand wet and humid conditions.
