MEDIUM INTENSITY:
AOL: Mi-2KP

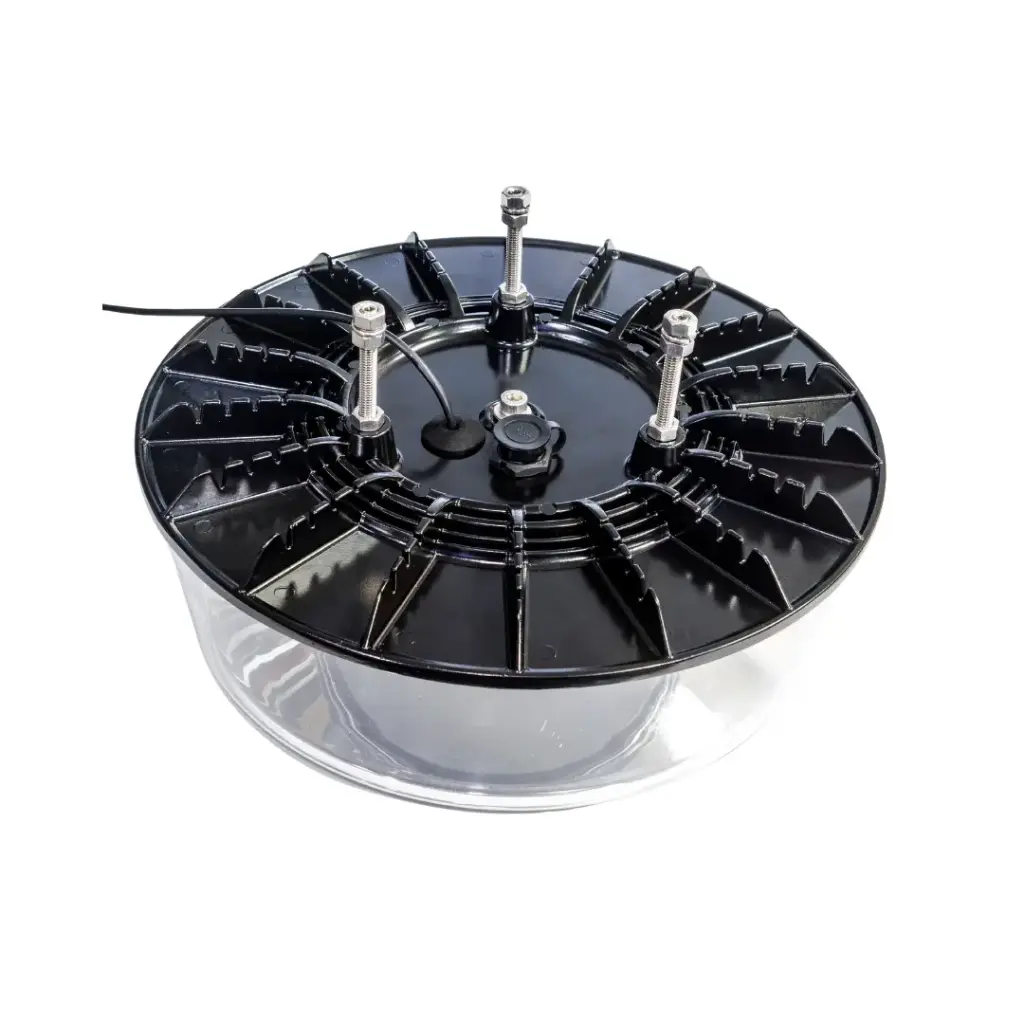

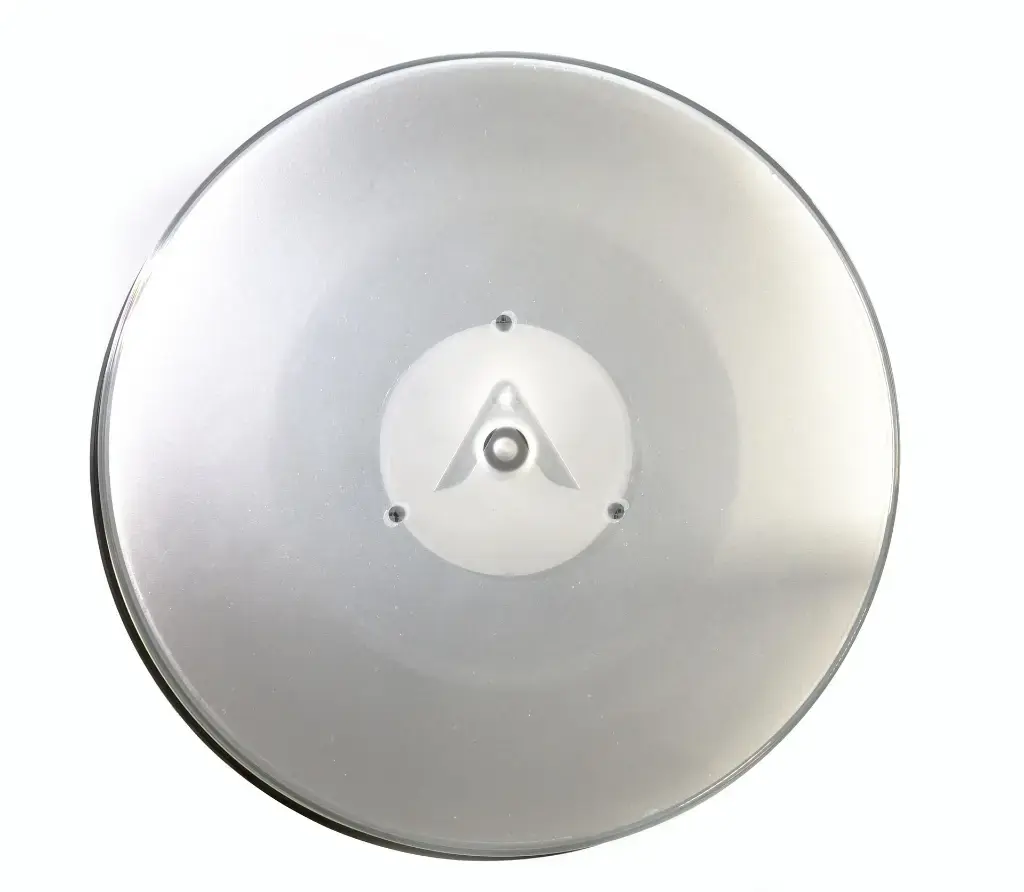

Introducing our Medium Intensity Type B Aviation Obstruction Light (AOL) – equipped with high brightness SMD LED, flashing in red color. Fully compliant with ICAO and CAAM standards, it's ideal for structures above 45 meters.
Embrace reliable aviation warning with our advanced Medium Intensity Type B model, safeguarding structures efficiently.
Everything you should know about our AOL: Mi-2KP
Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.
Features
2,000 cd Brightness
IP67 Rating
Surge Protection
Power
Savings
Solid State Tech
Photo Sensor
Super Lite
Alarm Relay
GPS Sync
Compliance
ICAO
CAAM
SIRIM
Application
Building
Chimney
Wind Turbines
Bridges
Telecom Towers
Specifications
Engineered to Meet Standards. Designed for Reliable Performance
Compliance and Certifications
- ICAO Annex 14
- CAAM ASD 404 & CAD 14
- FAA L-864
Dimension (L*W*H) & Weight
-
266x266x98mm
- 1.8kg (Lamp Head)
- 3.5kg (Twin Model)
- 1.2kg (Bracket)
- 13.5kg (WP Control Panel 1+1)
Performed Test
- Rain Test - 130mm/h
- Wind Test - 150km/h
- Humidity Test - 95% RH (+55˚C for 72h)
- Operational Test - 1000h
- Leakage Current Test - < 10µA
Characteristics
- Light Type - Medium Intensity Type B
- Light Source - 80 SMD LED
- Lifespan - ≥ 100,000h
- Effective Intensity - 2,000 cd (Night)
- Light Color - Red
- Horizontal Beam - 360˚
- Vertical Beam - >3˚
Operation
- Mode: Flashing
- Flashing Rate: 20 - 30 fpm
- Temperature: -20˚C ~ +80˚C
- IP Rate: IP67
Material
- Cover - Automotive Grade PMMA
- Body - ED Coated Die Cast Aluminum
Ready to elevate aviation safety with reliable lighting solutions?
Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.
INNOVATIVE LED SOLUTIONS
BETTER
BY DESIGN
Built to last, we engineer our lights with many special features to match the uncompromising environment that they are used in. One of which is its waterproof feature to ensure that it is able to withstand wet and humid conditions.
