SOLAR TYPE:

AOL: MS-2KP

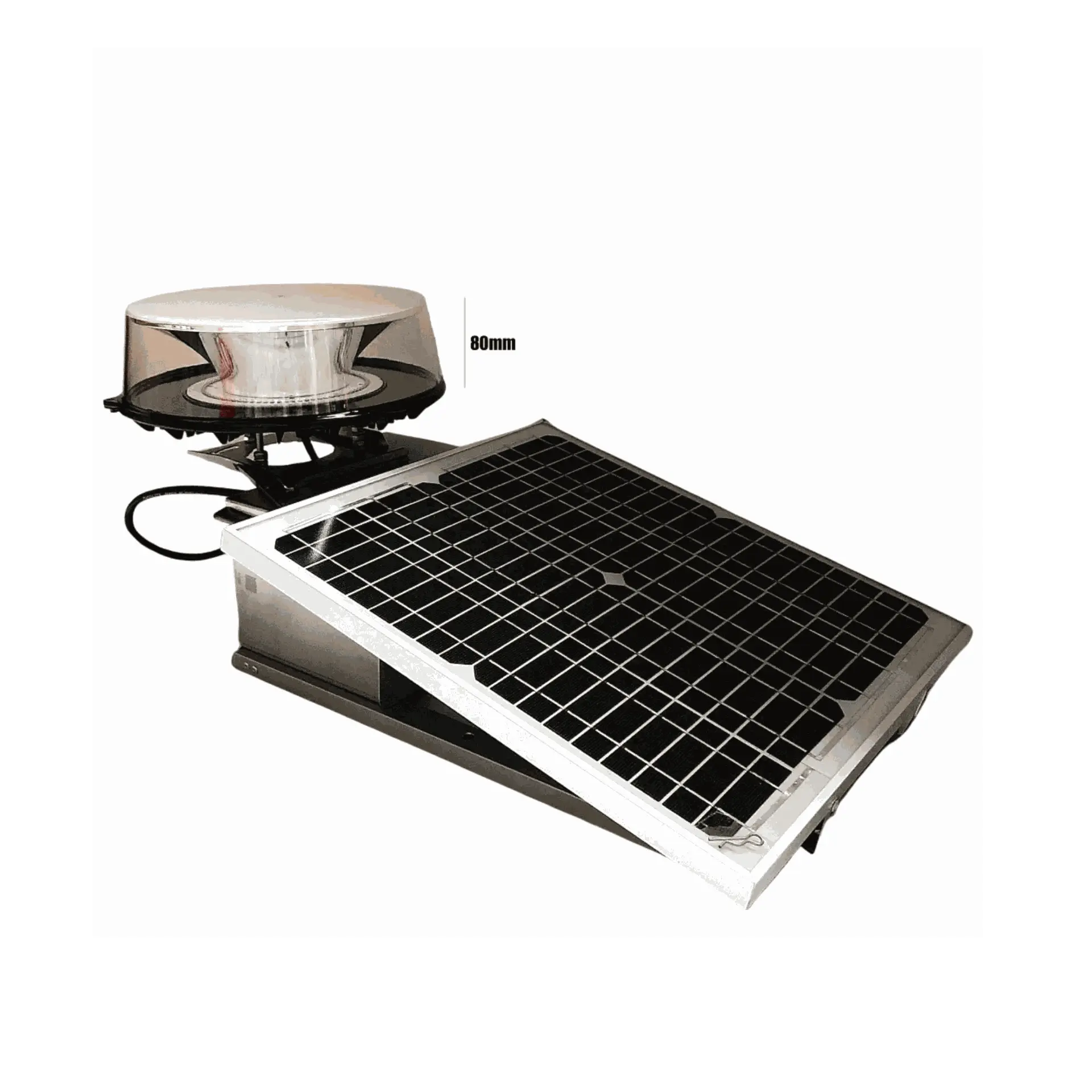

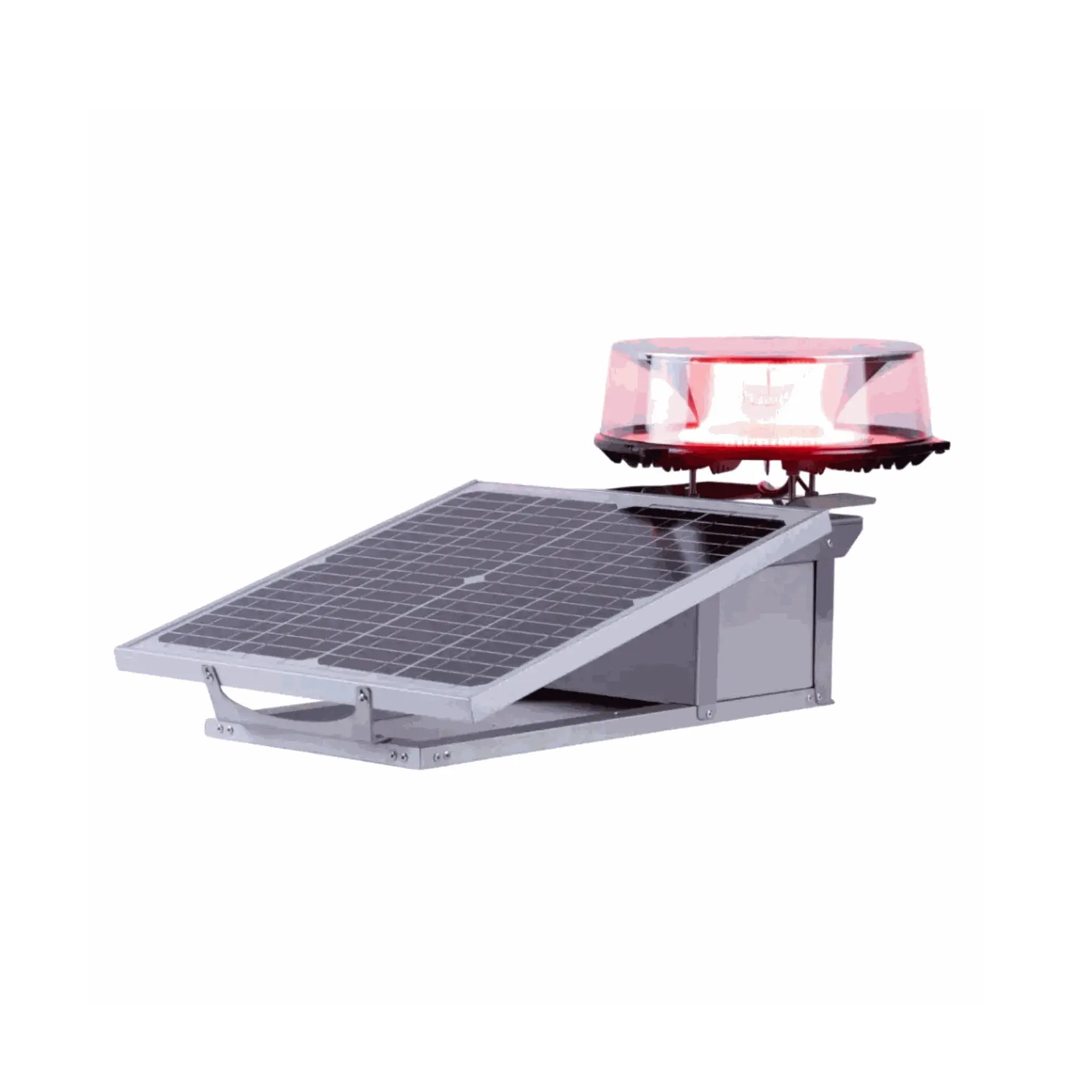

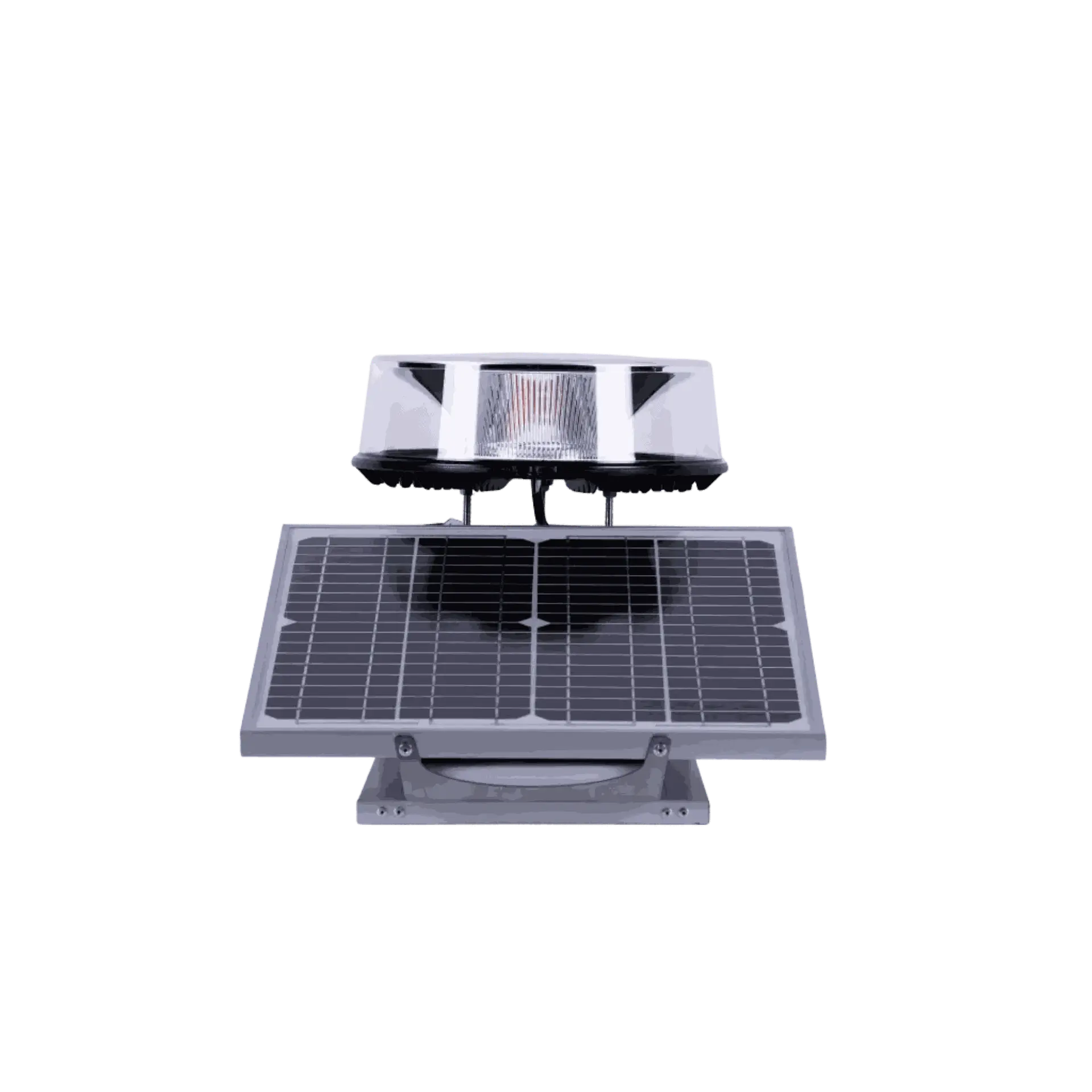

Introducing our Solar Powered Medium Intensity Type B Aviation Obstruction Light – a high performance solution for power transmission lines and telecommunication towers. This light utilizes high brightness SMD LED technology, flashing in red color, with a PMMA automotive grade lens for optimal light distribution.

Complying with ICAO and CAAM regulations, our Solar Powered Medium Intensity Type B model guarantees reliable and efficient aviation safety for structures above 45 meters.

Download Brochure PDF

Everything you should know about our AOL: MS-2KP

Engineered for Visibility. Built for Compliance. Proven in Real-World Applications.

Features

10Cd Brightness

IP67 Rating

Surge Protection

Power
Savings

Solid State Tech

Photo Sensor

Battery Powered

Solar Energy

20 - 60 Flashing

Compliance

ICAO

CAAM

SIRIM

Application

Building

Telecom Towers

Transmission Line

Specifications

Engineered to Meet Standards. Designed for Reliable Performance

Compliance and Certifications

ICAO Annex 14.
CAAM ASD 404 & CAD 14
FAA L-864

**Dimension (LWH) & Weight**

266x266x98mm (Lamp Head)
584x345x166mm (Casing Assembly)
1.8kg (Lamp Head)
4.2kg (Solar Panel)
3.0kg (24V Battery Set)

Performed Test

Rain Test - 130mm/h
Wind Test - 150km/h
Humidity Test - 95% RH (+55˚C for 72h)
Operational Test - 1000h
Leakage Current Test - < 10µA
Lightning Surge Test - 6kV 1.2/50μs, 3kA 8/20μs

Characteristics

Light Type - Medium Intensity Type B
Light Source - 80 SMD LED
Lifespan - ≥ 100,000h
Effective Intensity - 2000 Cd (Night)
Light Color - Red
Horizontal Beam - 360˚

Vertical Beam - >10˚

Operation

Mode - Flashing
Flashing Rate - 20 - 30 fpm
Temperature: -20˚C ~ +60˚C
IP Rate - IP67
Battery Autonomy - MPPT SLA: Up to 6 days MPPT LiFePO4: Up to 8 days

Material

Cover - Automotive Grade PMMA
Body - ED Coated Die Cast Aluminum
Battery Compartment - Stainless Steel
Base Frame - Aluminum
Solar Panel Type - Monocrystalline

Ready to elevate aviation safety with reliable lighting solutions?

Let's turn your vision into reality. Contact us today to request for quotation or connect with our company.

INNOVATIVE LED SOLUTIONS

BETTER

BY DESIGN

Built to last, we engineer our lights with many special features to match the uncompromising environment that they are used in. One of which is its waterproof feature to ensure that it is able to withstand wet and humid conditions.
