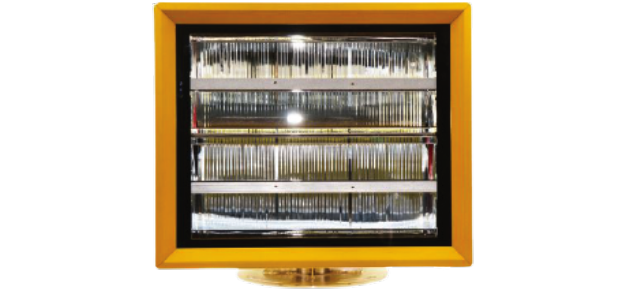

HI-90A SERIES
(WHITE LIGHT)

Group 48333-1

Hi-90A DESCRIPTION

AVIALITE Hi-90A Series is a flashing High Intensity LED obstruction beacon.

Hi-90A fulfills ICAO High Intensity Type A requirements:
Effective luminous Intensity: 200,000 cd


Group 48356

Download PDF
OUR INNOVATIVE TECHNOLOGY

THE SOURCE
OF OUR IMAGINATION

FEA Analysis


FEATURES

  • Efficient High brightness LED light source
  • Expected LED bulb life exceeds 200,000 hours
  • IP65 protection, corrosion & chemical resistant
  • Compact, light weight, highly resistant to shocks & vibrations
  • Excellent heat dissipation for optimum LED performance
  • Built tough for long service life


BENEFITS

  • With lightning protection function
  • High power LED
  • Globally proven reliablity and robustness
  • Internal photosensor
  • Ultra low operation cost, quick ROI

APPLICATION

  • Tall Buildings
  • Wind Turbines, Bridges
  • Cranes, Pylons and Chimneys
  • Power Transmission Towers
  • Telecommunication Towers and all structures that require High Intensity Obstruction lights especially tall structures in the aviation traffic corridors (e.g. near airports)
FIND THE RIGHT LED SOLUTIONS
Group-3454352
Hi-90A SERIES

TECHNICAL SPECIFICATIONS

OPTICAL CHARACTERISTICS

ICAO TYPE
20K-white

(Flashing) ICAO High Intensity Type

COLOUR

White

LUMINOUS INTENSITY

Day: 200,000 Candela (cd)
Twilight: 20,000 Candela (cd)
Night: 2,000 Candela (cd)

VERTICAL BEAM SPREAD

3° - 7°

HORIZONTAL BEAM SPREAD

90°


POWER

OPERATING VOLTAGE
AC 176 or 264V
AVERAGE POWER
< 80W [/one_second]

OPERATING CONDITIONS

TEMPERATURE

-40°C to +55°C

INGRESS PROTECTION

IP66

WIND LOAD

60m/s

FLASH RATE

40-60 flash/min

SPECIFICATIONS

MATERIAL OF COVER
Polycarbonate
MATERIAL OF LAMP PANEL

Aluminium die casting

SENSOR DETECTION

>500 Lux = 200k ±25% cd
50-500 Lux = 20k ±25% cd
< 50 Lux = 2k ±25% cd


DIMENSIONS & WEIGHT (LAMP)

LENGTH

273mm

WIDTH

194mm

HEIGHT

212mm

WEIGHT

12KG
