ICAO LOW INTENSITY TYPE B
ROBUST
& RELIABLE

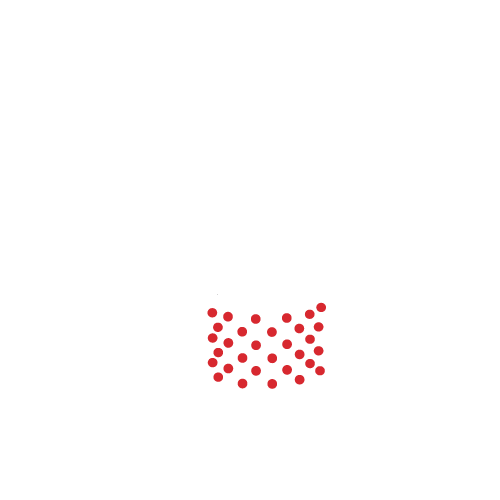

LS-3272-12 SERIES
(RED LIGHT)
OUR INNOVATIVE TECHNOLOGY
THE SOURCE
OF OUR IMAGINATION
FEATURES
- High brightness LED light source
- Expected LED bulb life exceeds 100,000 hours
- Excellent heat dissipation for optimum LED performance
- Battery and Solar panel are rain and moisture resistant suitable for outdoor installations
- The solar panel charges the battery during daylight
- During the night when the ambient light level drops below 100 lux, the LED lamp will automatically switch on
- Built in Solid State automatic charging controller
- Battery damage protection with auto low voltage disconnect
- Compact, light weight, high resistant to shock & vibration
- Corrosion & chemical resistant
BENEFITS
- Install on site with ease and minimum tools and manpower
- Virtually maintainance free operation and design
- Proven robust & reliable
- Low wind drag, unobtrusive
- Ultra low operation cost, quick ROI
LS-3272-12 SERIES
TECHNICAL SPECIFICATIONS
OPTICAL CHARACTERISTICS
ICAO TYPE
Low Intensity ICAO Type B
EFFECTIVE LUMINOUS INTENSITY
35cd (Candela)
VERTICAL BEAM SPREAD
15° with 5° upward inclination
HORIZONTAL BEAM SPREAD
360° omni-directional
OUTPUT COLOUR
Red Light
LED SOURCE
72 LED Cluster
LED SIZE
5mm
PHYSICAL PROPERTIES
Advanced optical grade epoxy with UV inhibitor, highly chemical and UV resistant
POWER
SOLAR PANEL
Polycrystalline Silicon photo voltaic cells
PEAK POWER
5.0 watts max
MAX POWER CURRENT
0.29A
MAX POWER VOLTAGE
16.8V
BATTERY POWERED
12V sealed lead acid battery
Automatic low voltage disconnect
Note: All batteries will discharge over time, battery in storage of over 3 months requires charging. To ensure the battery health, turn on the lamp and place the lamp under direct sun for charging for a day.
AUTONOMY
5 Days
TOOL FREE SYSTEM
Change battery without tools
Faster and convenient
OPERATING CONDITIONS
TEMPERATURE
-20°C to +60°C
INGRESS PROTECTION
Battery Housing IP65
Solar Lamp IP67
VIBRATION RESISTANCE
Resistant to shock and vibration
SPECIFICATIONS
LIGHT SENSOR SENSITIVITY
Auto ON/OFF of lamp,
Photo sensing of
Ambient light
< 100 Lux (±10%) = Lamp ‘ON’
> 100 Lux (±10%) = Lamp ‘OFF’
ALARM RELAY CONDITIONS
For remote monitoring of:
A. Power supply failure
B. Lamp failure
LAMP FAILURE ALARM OUTPUT
1. NO (Normally Open)
2. Com (Common)
3. NC (Normally Closed)
DIMENSIONS & WEIGHT
HEIGHT
180mm
WIDTH
205mm
DEPTH
180mm
WEIGHT (with battery)
2.8kg
MATERIAL PROPERTY
BATTERY HOUSING
Stainless steel
LAMP BODY
UV & environmentally resistant epoxy resin
MOUNTING BOLT
Stainless steel M6 bolt/ spring washer
